BeamOn HR 4/3 Inch (光束分析儀)

BeamOn HR 4/3 Inch (Large Aperture Beam Profilers)

47MP高靈敏度光束分析儀，支援多光束分析、功率與位置量測。

Innovative 47 MP Large Aperture Beam Profiler, with enhanced sensitivity at NIR, up to 1350 nm
Multiple active areas for multi beam analysis
Versatile – Measures Profile, Power and Position

Typical Applications:

Measurements of VCSEL, measurement over a wide spectrum of laser beams – from 25 microns to 12.5 mm
High accuracy measurement of high power lasers

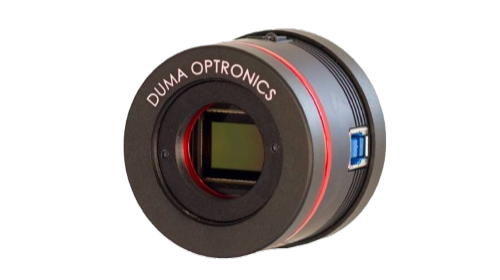

BeamOn-HR_500x280

Product Specifications

產品規格

Model	BEAMON-4/3”
Laser Type	1 micron or better
Resolution (H x V pixels)	8200 x 5600
Beam Size Elliptical Beams	⌀25 μm – ⌀12.5 mm ⌀25 μm – 12.5×18.5 mm
Spectral Response	350 – 1600 nm (VIS NIR)
Sensor Active Area (mm)	Diagonal 23.2 mm 19.1 x 13, sensor can be divided into multiple active areas, working in parallel for up to 400 sectors
Gain Control	Up to 570
ADC Dynamic Range	16 bit
Shutter Speed	Shutter – 32 µsec to 2 sec
Min. Pixel Size	2.3 µm x 2.3 µm
Exposure Control	Programmable via GUI
Accessories	-IR Edge Filter -C-Mount Filter
Power Supply	1.2 [W] , 0.24 [A]
Housing Size in mm	⌀62 (see drawing)
Weight (typical)	300 gr.
Min. Hardware Requirements	CPU i5 1.6 GHz, 4 GB RAM
Interface – USB 3.0	Windows 8/10/11
Cable length	2 [m]
Mechanical Interface	Post mounting: M4 Optical attachments & filters: 1.25”

*Other specifications upon request.
