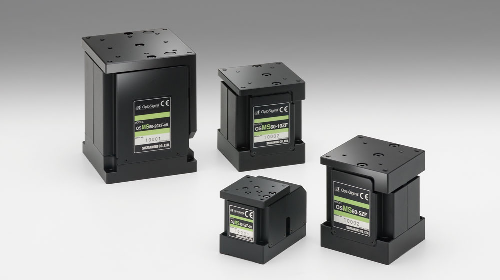

Flat Z軸電控平移台

Translation Motorized Stages, Flat Z axis – 5 Phase Stepping Motor

用於測量和檢測的Z軸步進馬達驅動平台,具有高剛度和高精度。安裝平台與底座平行,垂直於移動方向。

Z axis stepping motor driven stages for measurement and inspection, offering high stiffness and high precision.

The mounting platform is oriented parallel to the base and is perpendicular to the direction of travel.

Product Specifications

產品規格

Part Number Stage Size Stage Height Travel Load Capacity
OSMS40-5ZF-0B 40x40mm 51mm 5mm 19.6N (2.0kgf)
OSMS60-5ZF 60x60mm 73mm 5mm 29.4N (3.0kgf)
OSMS60-10ZF 60x60mm 75.5mm 10mm 39.2N (4.0kgf)
OSMS80-20ZF-0B 80x80mm 108mm 20mm 147N (15.0kgf)
