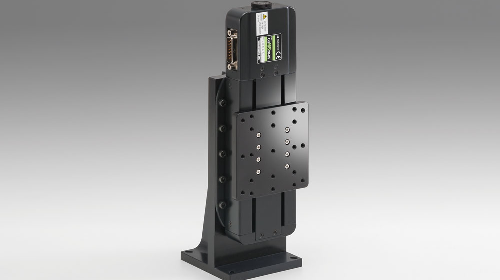

Z軸OSMS系列電控平移台
步進馬達驅動平台，適用於要求高剛性、高精度的測量、檢查裝置的定位。
Product Specifications
| Part Number | Stage Size
(M6, INCH) |
Height of the center of the top plate at the middle of the travel range (INCH) |
Travel | Load Capacity | ||
|---|---|---|---|---|---|---|
| Top Plate Mounting Hole Type | ||||||
| M4 | M6 | INCH | ||||
|
OSMS20-35(Z) |
OSMS20-35(Z)-M6 | OSMS20-35(Z)-INCH | 85x85mm | 95mm (94.6mm) |
35mm | 29.4N (3.0kgf)* |
| OSMS20-85(Z) | OSMS20-85(Z)-M6 | OSMS20-85(Z)-INCH | 85x85mm | 120mm | 85mm | 29.4N (3.0kgf)* |
| OSMS26-50(Z) | OSMS26-50(Z)-M6 | OSMS26-50(Z)-INCH | 100x100mm (120x120mm) |
126mm (124.6mm) |
50mm | 39.2N (4.0kgf) |
| OSMS26-100(Z) | OSMS26-100(Z)-M6 | OSMS26-100(Z)-INCH | 100x100mm (120x120mm) |
150mm | 100mm | 39.2N (4.0kgf) |
| OSMS26-200(Z) | OSMS26-200(Z)-M6 | OSMS26-200(Z)-INCH | 100x100mm (120x120mm) |
200mm (199.2mm) |
200mm | 39.2N (4.0kgf) |
| OSMS26-300(Z) | OSMS26-300(Z)-M6 | OSMS26-300(Z)-INCH | 100x100mm (120x120mm) |
250mm | 300mm | 39.2N (4.0kgf) |
| OSMS33-300(Z) | OSMS33-300(Z)-M6 | OSMS33-300(Z)-INCH | 120x120mm | 250mm (248.4mm) |
300mm | 58.8N (6.0kgf) |
| OSMS33-500(Z) | OSMS33-500(Z)-M6 | OSMS33-500(Z)-INCH | 120x120mm | 350mm | 500mm | 58.8N (6.0kgf) |
* When using SHOT-702, SHOT-702H, GIP-101B, SHOT-302GS, SHOT-304GS, HIT-MV, HIT-SA and HSC-103
