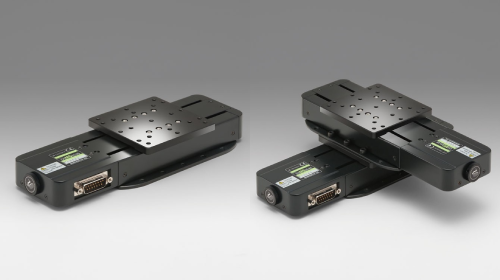

X&Y Axis OSMS Series Translation Motorized Stages X&Y軸OSMS系列電控平移台

步進馬達驅動平台，適用於要求高剛性、高精度的測量、檢查裝置的定位。

品牌: SIGMAKOKI Co., Ltd. ( OptoSigma )
  • High stiffness & precision – Ideal for precision positioning and inspection.
  • Stepping motor driven – Stable and accurate motion control.
  • CE-compliant – Standard motorized stage design.
  • Versatile travel range – Available from 35 to 500 mm.
  • Flexible installation – Can be used in any orientation.
Data Sheet Download Download

Product Specifications

產品規格

Part Number Stage Size

(M6, INCH)

 Width

(M6, INCH)

 Stage Height Travel Load Capacity
Top Plate Mounting Hole Type
M4 M6 INCH

OSMS20-35(X)

 OSMS20-35(X)-M6 OSMS20-35(X)-INCH 85x85mm 85mm 35.7mm 35mm 78.4N (8.0kgf)
OSMS20-85(X) OSMS20-85(X)-M6 OSMS20-85(X)-INCH 85x85mm 85mm 35.7mm 85mm 78.4N (8.0kgf)
OSMS26-50(X) OSMS26-50(X)-M6 OSMS26-50(X)-INCH 100x100mm
(120x120mm)		 100mm
(120mm)		 43mm 50mm 117N (12.0kgf)
OSMS26-100(X) OSMS26-100(X)-M6 OSMS26-100(X)-INCH 100x100mm
(120x120mm)		 100mm
(120mm)		 43mm 100mm 117N (12.0kgf)
OSMS26-200(X) OSMS26-200(X)-M6 OSMS26-200(X)-INCH 100x100mm
(120x120mm)		 100mm
(120mm)		 43mm 200mm 117N (12.0kgf)
OSMS26-300(X) OSMS26-300(X)-M6 OSMS26-300(X)-INCH 100x100mm
(120x120mm)		 100mm
(120mm)		 43mm 300mm 117N (12.0kgf)
OSMS33-300(X) OSMS33-300(X)-M6 OSMS33-300(X)-INCH 120x120mm 120mm 56.7mm 300mm 196N (20.0kgf)
OSMS33-500(X) OSMS33-500(X)-M6 OSMS33-500(X)-INCH 120x120mm 120mm 56.7mm 500mm 196N (20.0kgf)
OSMS33-800(X) OSMS33-800(X)-M6 OSMS33-800(X)-INCH 120x120mm 120mm 66.7mm 800mm 196N (20.0kgf)
