真空用電動轉動平台

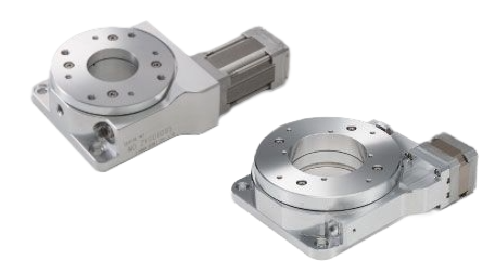

Motorized SGSP-YAW rotation stages modified for use in high vacuum.
Key Advantages
Product Specifications
| Part Number | VSGSP-60YAW | VSGSP-120YAW |
|---|---|---|
| Rotation Range | In the CW or CCW direction to ∞ | Counterclockwise CCW direction to ∞, Clockwise CW direction stops at near 0 degree (−2.5°) |
| Stage Size [mm] | φ60 | φ120 |
| Feed Screw | Worm and worm wheel | Worm and worm wheel |
| Positioning Slide | Bearing | Crossed roller |
| Stage Material | Aluminum | Aluminum / Stainless steel |
| Weight [kg] | 0.45 | 1.7 |
| Resolution (Full)[μm/pulse] | 0.6 | 1.2 |
| Weight [kg] | 0.6 | 1.2 |
| Resolution (Full)[ ° ] | 0.005 | 0.005 |
| Resolution (Half)[ ° ] | 0.0025 | 0.0025 |
| MAX Speed [°/sec] | 20 | 20 |
| Positional Repeatability [ ° ] | 0.02 | 0.02 |
| Load Capacity[N] | 29.4 (3.0kgf) | 98.0(10.0kgf) |
| Lost Motion[ ° ]] | 0.05 | 0.05 |
